iDEAL MSC-13K-B-678 Mobile Column Lift, Six Column Set, 78,000 lbs.

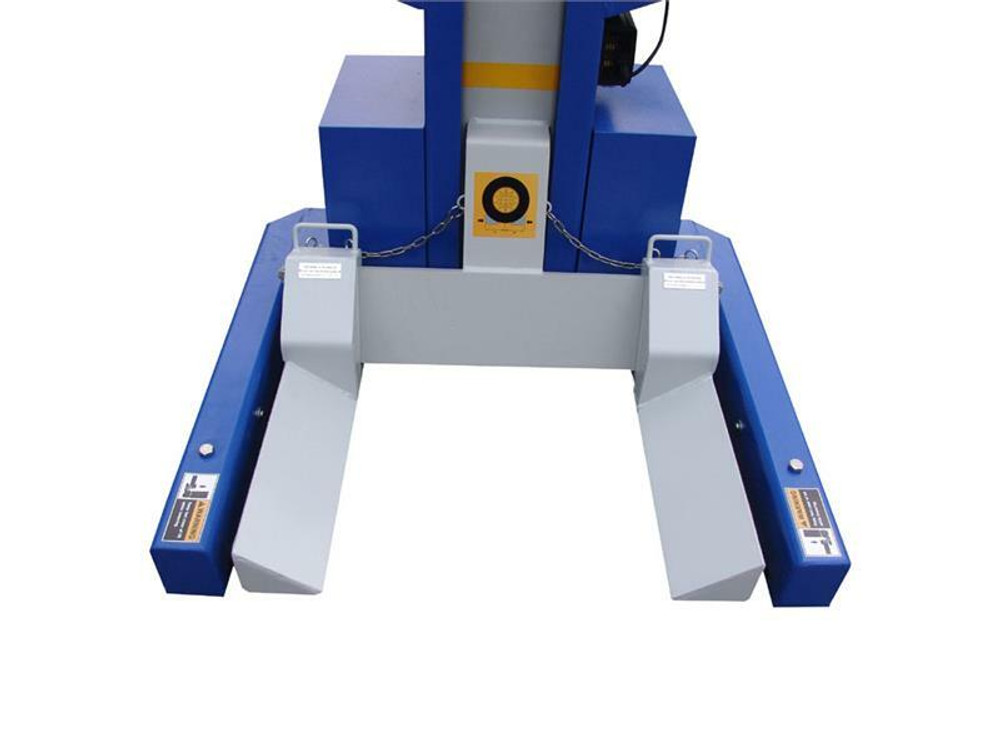

Features Easy to use master controller for individual or paired synchronized operation Siemens PLC and Electro-Optical encoder provide continuous synchronization of all columns Adjustable lifting forks accommodate the widest range of wheels Easily positioned with pallet jack style wheel Heavy-duty hydraulic system Large carriage bearings provide durable, fast and easy lifting LCD screen with keyboard offers easy to read visuals of settings and lifting height Independent mechanical locking system Emergency switch on each column provide highest safety assurance Operable from any column Direct drive hydraulic cylinder Battery operated with onboard charging system Easily moved for use in multiple bays Can be stored out of the way when not in use to maximize work space Requires hydraulic oil before use (Not included) Batteries NOT Included. Requires (2) 12V Deep Cycle Batteries per Column   Click here for Product Manual and Installation Specifications Lift Models MSC-13K-B-678 Column Configurations 6 Column Capacity 78,000 lbs AC Power (Input, Per Column) 100-140VAC, 60Hz, 1 PH DC Power (Output, Per Column) 24VDC Lifting Height 67.1″ Column Heights – Min/Max Min. 88.6″ / Max 155.5″ Overall Width 44.1″ Fork Adjustable Range 6.3″ – 22″ Fork Length 14″ Fork to Column Clearance 9.3″ Rise Time 75S Descent Time 60S Maximum Distance between Columns 32.8′ Minimum Concrete Surface Strength 3000 PSI Noise Level 70 dB(A) Set-Up / Operation Indoors Battery Type (Not included) 12VDC Sealed Deep Cycle Battery (BCI Group 31, AH-105) Ship Weight 1,210 lbs per Column
